measure heating oil usage with a Vl53L0X time of flight sensor and display on an energy dashboard

measure oil or water tank liquid level with a time of flight sensor

how to make a heating oil tank level sensor that’s more useful than anything you can buy.

This sensor…

  • can measure oil level in any unit – litres, kWh, gallons or days until I need to refill the tank
  • displays readings on a time graph (uses Home Assistant history graph).
  • receive readings or alerts as an email or phone notification or flashing smart bulb in the house.
  • help calculate the date when you’ll need to order or tell you how much free space there is in the tank
  • show your oil usage on the Home Assistant wnergy dashboard
  • uses an infrared based Vl53L0X time of flight sensor (~£5 ebay)
  • uses any ESP32 or ESP8266 development board with wifi. I used a nodemcu v3 ESP8266 (~ £6).
  • could work outdoors and on battery power with a waterproof electrician’s housing. If you need to use battery power an ESP8266 might be more appropriate. The battery power might be 6 x 18650 cells based on this power pack I made
  • this sensor could instead monitor the salt level in a water softener or the water level in a tank (ref Dr Zzz – youtube)

Background: homes like mine use diesel oil as a fuel to keep warm in winter. Over the course of a winter I might need two or three deliveries of oil but I’ve no way to predict when I’ll need more oil or know how much to order. And I really don’t ever want to run out of oil. The oil is burned in a heating boiler in the same way that many homes in the UK burn methane gas. Although we call the liquid ‘heating oil’ it’s more runny than lubricating oil. You may call it diesel or white spirits or turps or paraffin or kerosine.

I asked local firm Shelford Heating to quote a price for an oil level sensor. Their solution involved drilling the steel tank to fit an Apollo wireless kit – but £220 seemed excessive for this need. I could also have bought the kit, which sends an approximate oil level to a display but I really wanted something that could alert me better.

what’s needed for this project

  • Vl53L0X time of flight sensor
  • coloured Dupont wires or coloured 18 gauge stranded wires if the wires need to be long
  • if your tank is outdoors you’ll need waterproofing (eg Kafuter K-705 gel plus a housing) and get a 5v supply to the oil tank
  • an ESP8266 or ESP32 development board
  • Home Assistant already set up on a Raspberry Pi
  • heat shrink tubing and soldering skills if you want to make reliable connections (you do)
  • if you want notifications you need your email account server settings (optional)
  • if you want to keep long term records you’d need an IFTTT account to send the data to Google Sheets (optional)

there are other posts on this topic

how to connect up an oil level sensor to a ESP32 / ESP8266 development board

This is the current version of my original oil tank level sensor using the ultrasonic JSN-SR04T that has been working reliably for years. It runs in parallel with the older sensor. The limitation of the older ultrasonic sensor is that it cannot measure at short range so it records the same oil level whether the tall is full or 200mm below full. When the level drops by 200mm the readings are still very useful at alerting me to order more oil.

The Vl53L0X time of flight sensor is an inexpensive alternative that works by sending infrared blips to the liquid surface and then measuring the ‘time of flight’ to estimate how far away it is. It can send correct values at short range ie even if the tank is full. You can find versions of this sensor (VL53L0X, TOF10120, VL53L1X, VL6180X) which work best at different distances (eg below). I chose the Vl53L0X because it’s made for the range 30mm-1200m as suits my tank. (A post at instructables states that the VL53L1X is a much better and more expensive sensor – but one year on I’m very happy with the project as follows below.

The ESPhome software we use can also set the sensor to a long distance remote range of 1500 -2000mm. Wonderfully, when the sensor is hooked up it sends a distance value (in metres) and I can multiply that by a number to get readings in mm or litres or kW or even money. The calculation is simpler if your oil tank has a regular shape but anything is doable.

This sensor can be bought with a dust cover (thanks to ‘Tyeth’ – see comments section at the bottom). We aren’t sure if this can withstand the oil vapour over time – it’s lasted since mid-2022. I believe polyurethane is the plastic to use to protect against oil whereas silicone is destroyed by oil but will protect against water. Remember to check the spec sheet to find a sensor with the distance range that you need to measure.

The Vl53L0X module has six pin connectors – you only need to use four of them. I used Dupont male to female wires because my ESP8266 nodemcu already had pins. I soldered the male pins to the Vl53L0X module and extended the wires with coloured cables (silicone 18 AWG 0.75mm) and covered the join in heat-shrink. GND and VIN connect to GND and 3.3v on an ESP8266 module. Connect SCL to D1 (or GPI05). Connect SDA to D2 (or GPI04). For connections to a ESP32 see the image below

a housing to protect the VL53L0X oil level sensor and ESP

This is where my system will surely be different. A 3D printed part holds the sensor in place with the help of some hot glue. I don’t yet know if the vapour from the oil will damage the VL53L0X so I’m looking to improve the housing.

Getting dirt in the tiny emitter and sensor holes is to be avoided as the emerging pulse or photon can be deflected randomly / cause crosstalk. So I cut a 30mm circle of acetate film (from a phone case) and glued it to the cap I’d made for the sensor. I might have used a piece of phone screen protector and it would wise to test if the cover affects the distance reading. I cover this in my post about mounting and calibration here.

You can protect the sensor with glass, perspex or polycarbonate. The cover should be as thin, flat, parallel, clear and fitted close to the sensor as possible. ST, the chip maker have a video explaining how a more fussy two-piece glass cover pretty much reduces the crosstalk due to dust. I so wish they’ll create a similarly protected chip. The sensor notes are here.

Link to STL file for 3D printed holder file – oil-sensor-holder.stl

The sensor needs to be fixed so that it points down at the surface of the oil in the tank (photo). I used a tank hole that had housed the dipstick. A suitable cap, as shown below, was made on a 3D printer. A container cap might have worked … as long as it doesn’t wobble and thus affect the readings. You might instead drill a hole for it but I’ve no advice on this.

The sensor installed on a messy indoor all-metal oil tank! I lined the sensor holder with sticky felt to ensure it couldn’t slip or shift easily

how to write the program and install it on the ESP 32 / ESP8266 development board

My oil sensor is a ‘connected’ oil sensor. It takes readings, sends them to Home Assistant which will present them in various ways. To gain this connectivity you need a working Home Assistant installation on a Raspberry Pi (shown in an earlier project).

What you do is to assemble a series of instructions (a program) and get the instructions turned into a file (=compiled into a ‘bin file’) that you upload to a ESP dev board via a USB cable. The file is otherwise called firmware. The process of installing the file to the ESP is called flashing the firmware although what you’re doing is akin to installing the program.

ESPHome is part of Home Assistant and lets you create code and the binary file for the ESP32/8266 chip.
  • use your browser to interact with Home Assistant on 192.168.x.x:8123
  • in Home Assistant go to the Esphome add-on and add a ‘new device’. Follow the process eg it’ll ask you for a name (eg oil level) and you may be asked to fill in wifi details.
  • Still in Esphome look for ‘Edit’ next to your new device. Add the following code making changes to suit your setup.

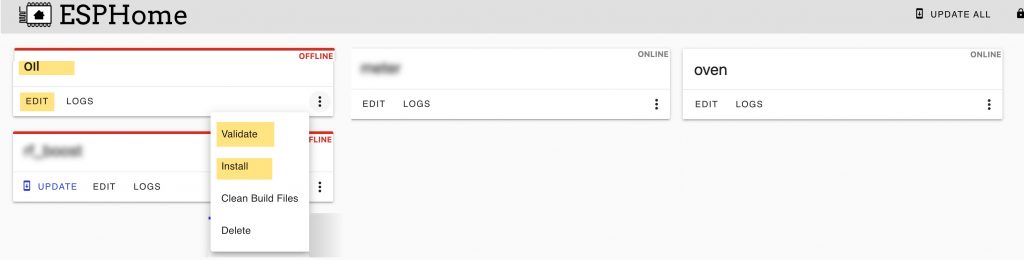

  • choose Install to upload this code to your development board.
# THIS IS FOR AN ESP8266 development board
# see final version further down this page if your trace is noisy
# we produce two entities, one for litres one for kWh
esphome:
  name: oil-tof
substitutions:
  devicename: oil-tof
esp8266:
  board: nodemcuv2
# enable logging
logger:
# enable Home Assistant API
api:
  encryption:
    key: "FtKhT5Sf4cwe5bh/N0Kzy6JMM5LG79H38rfceMlBHrE"
ota:
  password: ""
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  manual_ip:
    # set this to the IP of the ESP
    static_ip: 192.168.1.15
    # set this to the IP address of the router
    gateway: 192.168.1.1
    # the subnet of the network
    subnet: 255.255.255.0
  # hotspot in case wifi connection fails
  ap:
    ssid: "oil-tof fail hotspot"
    password: !secret wifi_password
captive_portal:

i2c:
  sda: D2 #GPI04 orange or green (data) pin 4
  scl: D1 #GPI05 yellow or blue (clock) pin 5
  scan: true

# use this sensor section - it works but to remove noise
# see the complicated version further down this page

sensor:
  - platform: vl53l0x
    name: "oil kW"
    address: 0x29
    id: myoillevel
    update_interval: 10s
    long_range: false
    accuracy_decimals: 0
    filters:
    - lambda: return (x - 0.034) * 1000 * 10;
    state_class: total
    device_class: energy
    unit_of_measurement: "kWh"

# post comments below explain my calibration
# return (x - 0.034) * 1000 * 10 - you could instead use
# return x * 1000 * 10 to get readings as kWh



  - platform: template
    name: "oil_level"
#    update_interval: 60s
    accuracy_decimals: 0
    unit_of_measurement: "L"
    lambda: |-
      return -0.1 * id(myoillevel).state ;
# negative to get a decreasing oil level

switch:
  - platform: restart
    name: ${devicename} restart


# THIS IS FOR AN ESP32 development board
# see final version further down this page if your trace is noisy
# we produce two entities, one for litres one for kWh

esphome:
  name: oil-tof

substitutions:
  devicename: oil-tof

esp32:
  board: esp32dev
  framework:
    type: arduino

# enable logging
logger:
# enable Home Assistant API
api:
  encryption:
    key: "FtKhT5Sf4cwe5bh/N0Kzy6JMM5LG79H38rfceMlBHrE"
ota:
  password: ""
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  manual_ip:
    # set this to the IP of the ESP
    static_ip: 192.168.1.15
    # set this to the IP address of the router
    gateway: 192.168.1.1
    # the subnet of the network
    subnet: 255.255.255.0
  # Enable hotspot if case wifi connection fails
  ap:
    ssid: "oil-tof fail hotspot"
    password: !secret wifi_password
captive_portal:

i2c:
  sda: 21 # orange or green
  scl: 22 # yellow or blue
  scan: true

# use this sensor section - it works but to remove noise
# see the complicated version further down this page

sensor:
  - platform: vl53l0x
    name: "oil kW"
    address: 0x29
    id: myoillevel
    update_interval: 10s
    long_range: false
    accuracy_decimals: 0
    filters:
    - lambda: return (x - 0.034) * 1000 * 10;
    state_class: total
    device_class: energy
    unit_of_measurement: "kWh"

#  use negative below to get negative oil level

  - platform: template
    name: "oil_level"
#    update_interval: 60s
    accuracy_decimals: 0
    unit_of_measurement: "L"
    lambda: |-
      return -0.1 * id(myoillevel).state ;


# see user comments below for an explanation of
# return (x - 0.034) * 1000 * 10 - you could instead use
# return x * 1000 * 10 to get readings as kWh

switch:
  - platform: restart
    name: ${devicename} restart


add your sensor data to the Home Assistant overview

  • when the code is installed, power-up the ESP board with a USB power source and go to Home Assistant > Integrations > + > ESPHome. You might have to enter the IP address you chose in the code. You’ll then see the oil level device that has been added to Home Assistant. The device will have an entity named like sensor.oil_level
  • go to the Home Assistant Overview where your stuff is normally displayed. Choose Edit dashboard in the top corner.
  • add a new card called history graph. On the entity line select your sensor.oil_level
  • add a new card called gauge to display your oil level. On the entity line select your sensor.oil_level
a sensor card; a history graph card and a gauge card. notice that in this first version of the code, ‘oil level’ is INCREASING. That’s because the number shown is the amount of oil needed to fill the tank!

*refine the oil level sensor code

the oil level graph now falls and is calibrated to suit my tank.

handle a few issues:

After several months use I needed to address some issues. Because of these points I modified the code as shown below. You may want to substitute the above ‘sensor:’ section with the following ‘sensor:’ section (explained below)

  • maxing out: at low oil levels the sensor is bouncing off a metal strut inside the tank so I need to relocate the sensor somewhere else. My readings plateau when the tank drops to 20% full.
  • calibration: the sensor measures in metres so I have to calculate the litres. My tank has a perfectly regular shape from top to bottom – so by measuring dipstick depths, I found that 100cm of tank depth contains 105.3 litres. In the code below the last two lines (filter and lamda) do this calibration. The two lines can be edited or entirely omitted to suit your tank.
  • the readings were a bit noisy. To counteract this I calculate the sliding average of an oil level reading. In my final version I replaced the sliding average with a Kalman calculation.
  • it was suggested that the ‘oil used’ graph should fall, not rise, so I made the reading negative. This also makes it easier to know how much oil to order. I should rename the sensor ‘oil used’ because the number it returns is the amount of oil I need to buy to fill the tank. Next I really don’t need an oil level reading every 10 seconds so I increased the update interval. The commercially available FoxRadar takes only a few readings per day.
# add a filter to the sensor section to calibrate the sensor.

# add a negative sign to produce a falling oil level:
#   filters:
#   - lambda: return x * -1053;

# note: 1053 is 1.053 (fiddle factor for tank) * 1000 (convert to litres)

# add a sensor filter to remove noise:

 filters:
  - lambda: return x * 1053;
  - sliding_window_moving_average:
    window_size: 20
    send_every: 10

# if your tank shape is irregular you can put your calibration
# graph of distance and volume in the code. SEE THE POST
# FROM 'Kev' below where he improved the filter section so:

#  – calibrate_linear:
#  – 110 -> 0
#  – 95 -> 204
#  – 75 -> 544
#  – 55 -> 900
#  – 35 -> 1320
#  – 15 -> 1660
#  – 0 -> 1800

when do I need to order more oil?

The first nice consequence is that I now know how much oil I need to order and how much I use. We might now need the following:

In a cold spell two households used 30 litres a day. And I can see I would need to order an extra 80 litres as it will take say, 9 days to arrive. I put the data in a spreadsheet and it looks like I’ll order in mid January – unless I start to use oil faster.

the trace is very noisy – how to remove noise from the trace

before and after adding a sensor filter – see the code section below.

The code below includes ways to remove noise from the readings. The quantile filter removes ‘outliers’ (the readings that are wild). Having removed the outliers we use a kalman calculation to smooth the graph. The results are good however occasionally the oil kWh wavers, goes negative and makes a mess of the Energy Dashboard. We therefore create a sensor that doesn’t go negative. This code produces four entities – only two are needed.

  • “oil kw-raw” – the raw reading from the sensor as kWh. Includes a tank fiddle factor (1000) to turn mm into litres
  • “oil kalman” – we do a ‘Kalman’ calculation on the raw kW to smooth it
  • “oil_level” – we take the smoothed “oil kalman” and convert kWh to litres by dividing it by 10
  • “oil_kalkw” – we take the smoothed “oil kalman” and prevent it from producing a lower value than the last reading.
IN ESPHOME - revised code for ESP32 and ESP8266 December 2023
# replace the entire sensor section and add globals

sensor:
  - platform: vl53l0x
    name: "oil kw-raw"
    address: 0x29
    id: myoilkw # UNFILTEREDKW
    update_interval: 10s
    long_range: false
    accuracy_decimals: 0
    unit_of_measurement: "kWh"
    state_class: total
    device_class: energy
    filters:
    - lambda: return x * 1000 * 10;
#   - lambda: return x * your-tank-factor * kW/L

  - platform: template
    name: "oil_level"
    id: myoillevel # unFILTEREDL
    accuracy_decimals: 0
    unit_of_measurement: "L"
    state_class: total
    lambda: |-
      return -0.1 * id(mykalmankw).state ;

  - platform: kalman_combinator
    name: "oil kalman"
    id: mykalmankw
    accuracy_decimals: 0
    unit_of_measurement: "kWh"
    state_class: total
    device_class: energy
    process_std_dev: 0.001
    sources:
      - source: myoilkw # UNFILTERED
        error: 1

  - platform: copy
    source_id: mykalmankw
    name: "oil_kalkw"
    accuracy_decimals: 0
    # filters: to reject a lower value
    filters:
      - skip_initial: 50
      - quantile:
          window_size: 6
          send_every: 6
          send_first_at: 6
          quantile: 0.95
      - lambda: |-
          if (abs(x < id(last_good_value))) return {};
          id(last_good_value) = x;
          return x;
globals:
- id: last_good_value
  type: int
  restore_value: no
  initial_value: '100'
- id: counter
  type: int
  restore_value: no
  initial_value: '0'

# add the code above in place of the sensor code earlier.

edit the Home Assistant energy dashboard

Go to Settings > Dashboards > Gas Consumption > Add Gas Source and find the entity for oil usage in kWh. In my example above this would be “oil_kalkw” or “oil kalman”. To track the costs enter a number e.g. 0.085 GPB/kWh or create an input number (in Helpers) such as input_number.oil_now_cost with a value of 0.085.

Example: if heating oil costs £0.85 per litre which ideally burns to produce 9 kWh of energy. For simpler maths I call this £0.85 for 10 kWh or £0.085 for 1 kWh. You could tweak this to allow for inefficient burning. If I had a home that didn’t use and leak so much energy I might see the value of pretending to be accurate.

Wait a couple of hours after updating the ‘Gas consumption’ and you’ll see a bar graph like this. The totals at the bottom show that the day’s ‘gas’ consumption was about 10 litres at a cost of £8.59. After a month of use I can report that the figures show a useful ‘general trend’ of oil usage. The accuracy might be give or take 10%.

If you’re more interested in water tank levels not oil tank levels:

water level graphs. Noisey time of flight sensor
I used the same sensor on my WATER (not oil) tank – see here for the housing I used

15 Responses

  1. John says:

    What do the values 1018 or 330 stand for?
    – lambda: return (x – 0.034) * 1018 * 10;
    Can you explain this line, please?
    x = the distance the sensor measures
    0.034 = some offset like sensor packaging ???
    1018 = ??
    10 = ??
    Where do you input the tank dimensions for the calculation?

    • roger says:

      Thanks for writing in with a question. I’ve a few posts on this topic and the explanation* for the factors hasn’t carried over to each post.
      x = the distance the sensor measures
      0.034 = some offset because values do not reach zero on a calibration graph – this is the intercept
      1018 = a tiny fiddle factor specific to my tank based on a few tank top-up refills. It’s 1.018 and because I want litres it’s 1.018 * 1000
      10 = convert litres to kW. It should be 9kW per litre but I used 10kW.

      * https://www.rogerfrost.com/water-or-oil-tank-level-mounting-a-vl53l0x-time-of-flight-sensor/

      There’s a new post coming in the next few days on my success to add Oil consumption to a HA energy dashboard

  2. Markus says:

    Is this example actually measuring oil? or not
    Did you show an example of how oil can be used with water?

    • roger says:

      Is this example actually measuring oil? Yes, oil. In litres.
      Did you show an example of how oil can be used with water? No.

  3. Stuart says:

    Hi Roger

    Great write up !

    with regards to Current / power reduction / optimisation when on battery.

    Does the Vl53L0X board uses standby current when the ESP is in deep sleep? looking at this website “https://www.instructables.com/WiFi-Oil-Tank-Monitor” they use a transistor connected to one of the outputs, thus perhaps an adaptation of this for ESPhome which turns on a dedicated pin to the base of the transistor, hopefully when in deep sleep the pin will be off and transistor not charged?

    Do you think this will work?

    esphome:
    name: oil-sensor
    on_boot:
    then:
    – delay: 5s
    – output.turn_on: sample_pin

    output:
    – platform: gpio
    pin: 5
    id: sample_pin

    deep_sleep:
    run_duration: 30s
    sleep_duration: 2min

  4. Tyeth says:

    Was creating similar for my mum, then found she had an old Watchman ultrasonic, but I’d planed to use the VL53L0X/1X. Thought I’d combine with the lilygo T-QT Pro, but only for the visual feedback during setup. Found some sensors that had a nice cover on aliexpress, doubt they’re tested for oil fumes but what I ended up with: https://www.aliexpress.com/item/1005003091941068.html (2nd and 3rd variants)

    • roger says:

      Thank you Tyeth for the link! I’ve incorporated your find in the post. I agree that this cover, or its mount, needs long term testing against oil fumes – in an earlier project using a sonar distance sensor all of the ABS plastic of that sensor has dissolved. One ray of hope is that the PLA plastic used to print a holder mount HAS not perished. I continue to look for a glass/metal casing.

      And the use of a Lilygo T-display does indeed make it mum-friendly! That’s good. Those displays are excellent and these days there’s code to have a slideshow of a graph and another output.
      (My alert is an email that sends daily / when level is lower – I’m hoping for an automation to put an oil order date in the Google calendar but the maths and coding waits for another lockdown).

  5. Dennis says:

    Changed this over to use quantile which looks like it really smooths out the curve. Still a bit of noise but looking much better.
    I have the device on usb power so i take a lot more samples.
    Also, had a different take on measurement. Using the tank’s maximum capacity and a simple formula tells you how much oil is in the tank

    sensor:
    – platform: vl53l0x
    name: “oil_level”
    address: 0x29
    id: myoillevel
    update_interval: 1s
    long_range: false
    accuracy_decimals: 1
    unit_of_measurement: “Gallons Remaining”
    filters:
    – lambda: return 330.0 – x/1.10*330.0;
    # – lambda: return x * 1053;
    – quantile:
    window_size: 900
    send_every: 900
    send_first_at: 900
    state_class: measurement

  6. Dennis says:

    Do you find that this sensor is Noisy for you? I’ve extended out the number of reads to once a minute, average for an hour and it still a little up and down.

    • roger says:

      Thanks for writing in. YES! I’ve added a picture of the output to the post. It is noisy but I’ll return to fix this when my urgent (water level) situation has passed! Let’s know id your config improves on mine.

      • Dennis says:

        Thanks for the Reply. I’m currently tweaking window size and the sample frequency.

        I’ll have a few tests over a few days and will come back and update this, tonights test is

        # to stop reading for a predefined interval
        deep_sleep:
        run_duration: 10s
        sleep_duration: 60min

        and this is in the sensor field
        – sliding_window_moving_average:
        window_size: 10
        send_every: 10

        I want it to give me an average of the 10 seconds it is awake; but the last log test i just did indicates that it is keeping track of that last 10 checks somewhere else.

        • roger says:

          SLEEP
          I recall a report somewhere that mentioned what happens during sleep – in any case good luck there Dennis.

          BATTERY POWER
          If you’ve switched over to battery power pls let us all know if battery life is reasonable.

        • roger says:

          Hello Dennis

          Thank you for adding more truth to the idea that this is a noisy sensor. We can’t exclude the idea that the platform / ESP32 might be part of it but no matter, you’ve found a solution for a still very useful sensor.

          GRAPH SMOOTHING / NOISE
          Well done for finding ‘quantile’ as it seems to more suit what I’m looking for by omitting outliers. I’ll note that you’re taking a fantastic number of readings and doing the maths over 15 minutes – a duration which suits our slow use of heating oil.

          In Home Assistant I used a Statistics graph which helped – but by averaging.

          CALIBRATION
          My tank is old-style metal and rectangular. I will tweak the fiddle-factor when it gets topped up for the first time. Just now the figures are good enough to know how much heating oil is used daily and how much to order.

          INDENTING YAML CODE
          This web page messes up indents – go to esphome.io to see how to do it: https://esphome.io/components/sensor/index.html

          • roger says:

            UPDATE:
            Cheers for the idea to use a quantile filter and sliding_window_moving_average on the oil tank ‘tof’ sensor.

            In an update of my post, near the bottom, you’ll see that I’ve stacked one sensor after the other and the effect is pretty good … or much improved.
            The Esphome quantile code removes outliers and this is followed by your second filter: sliding_window_moving_average.
            Thank you for the pointers that led to this.

Leave a Reply

Your email address will not be published. Required fields are marked *
